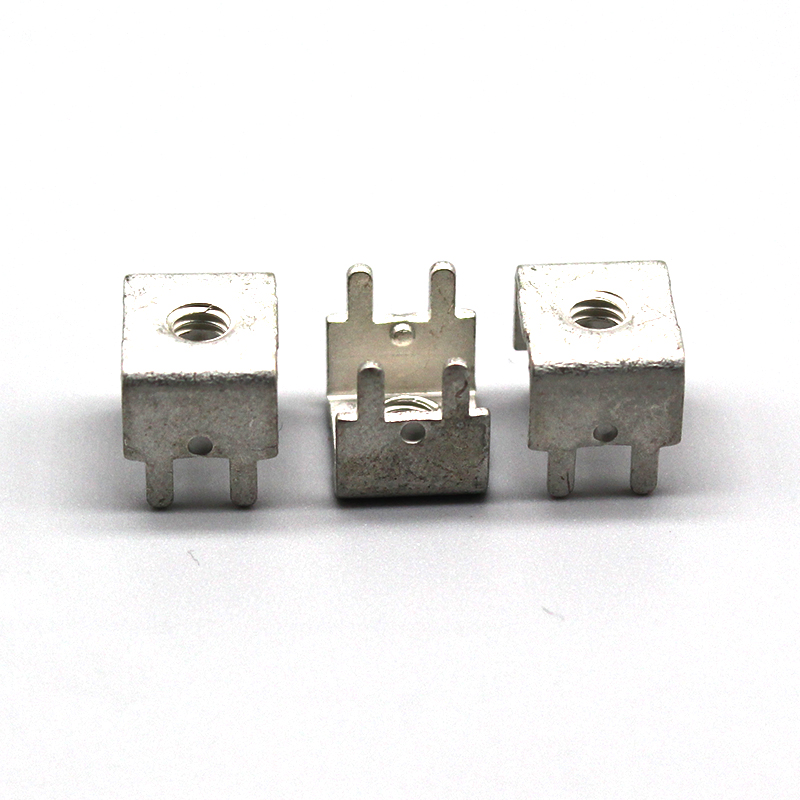

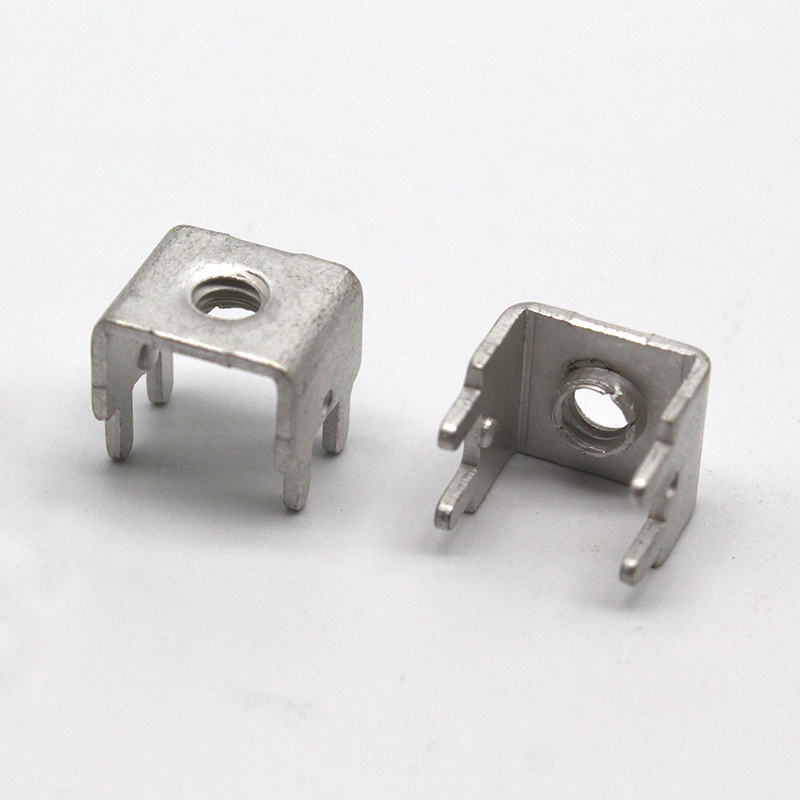

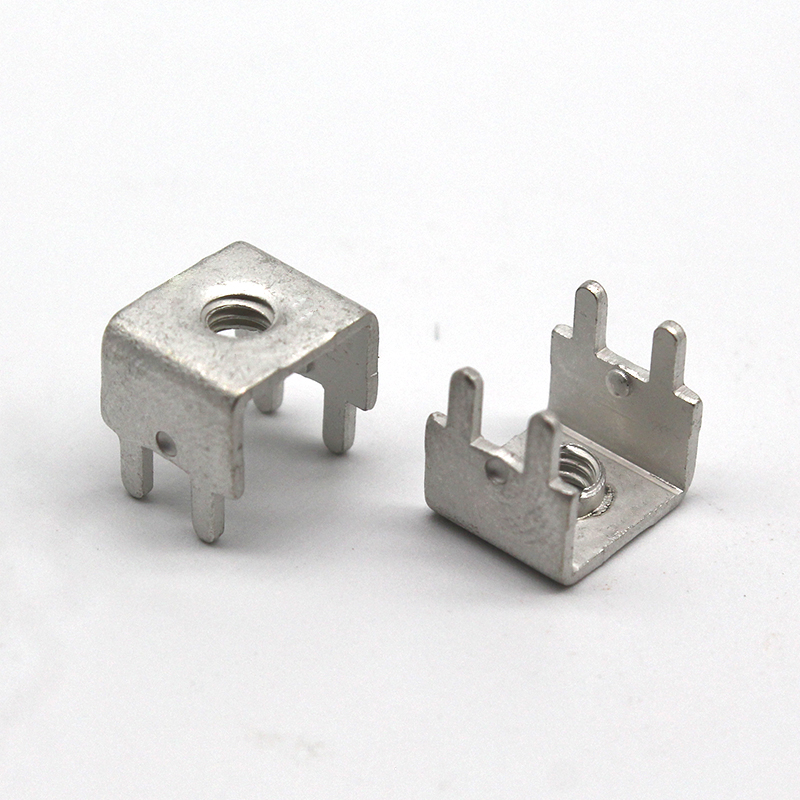

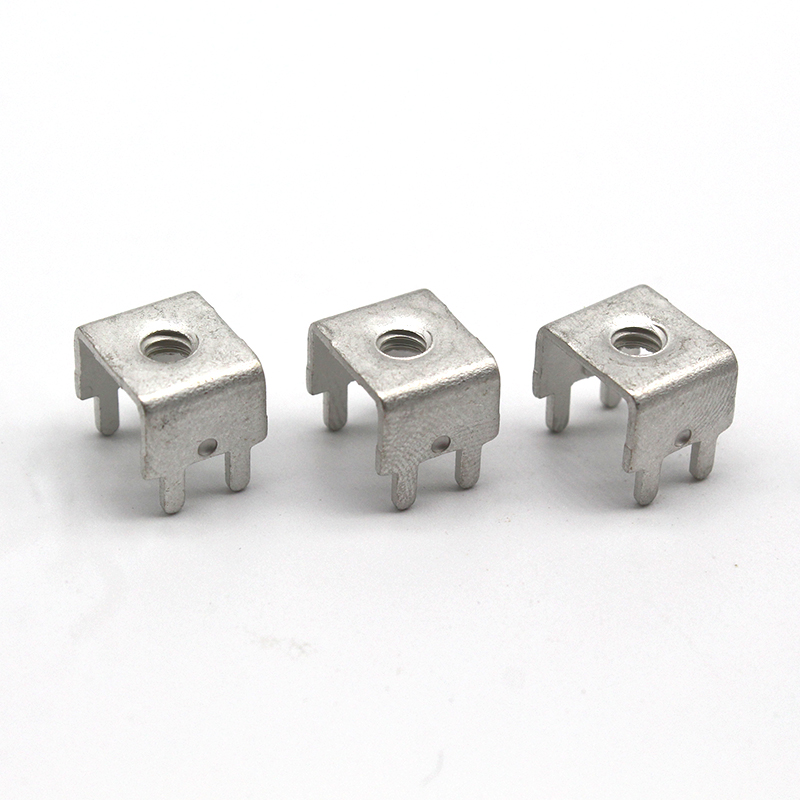

40A/80A PCB Solder Terminal Circuit board holder
Description
| Product Name | PCB Solder Terminal Circuit board holder |
| P/N | MLST-406 |
| Material | H65 brass/T2 red copper |
| Electric current | 40A/80A |
| Material thickness | 1mm |
| Surface treatment | High temperature nickel bright tin |
| Thread | M4 |

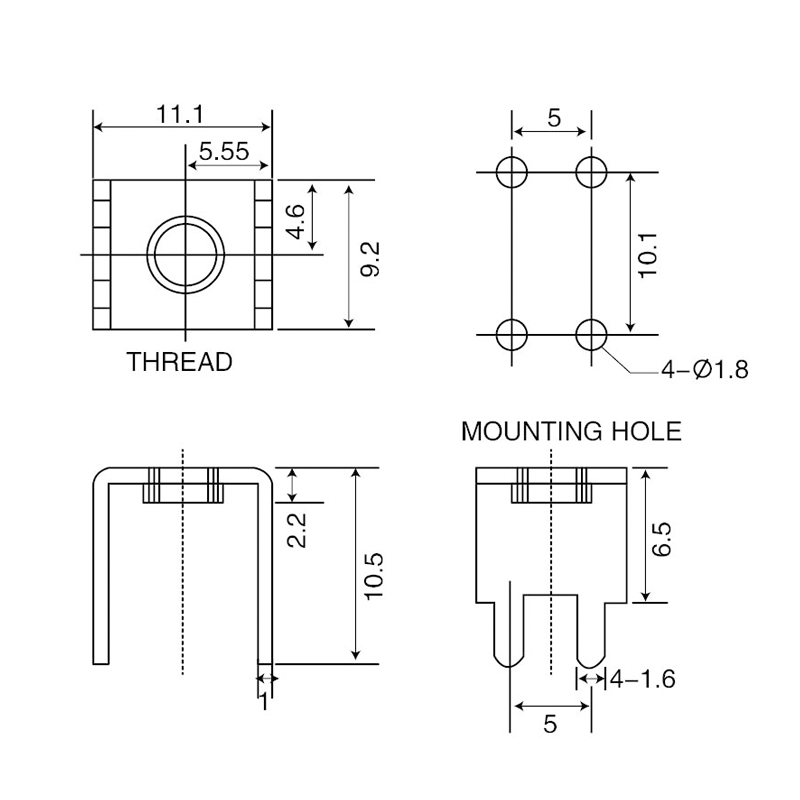

| Pin pitch | 5mm*10.1mm |
| Substrate height | 6.5mm |
| Size | 11.1mm*10.5mm*9.2mm |
| OEM/ODM | Accept |
| Packing | Polybag +carton +pallet |
| Application | Electronics, elevators, telecommunications, household lighting, electrical, etc. |
Features
Reinforcement of threads, not easy to slip, more solid, high current resistance.
Ensure solid electrical connection, safety, beauty and improve the convenience of electrical installation and maintenance.
Suitable for Security, Industrial, Lighting, Instrument, Metering,
Rail transportation, Elevators, Machinery and Equipment plants, etc.
