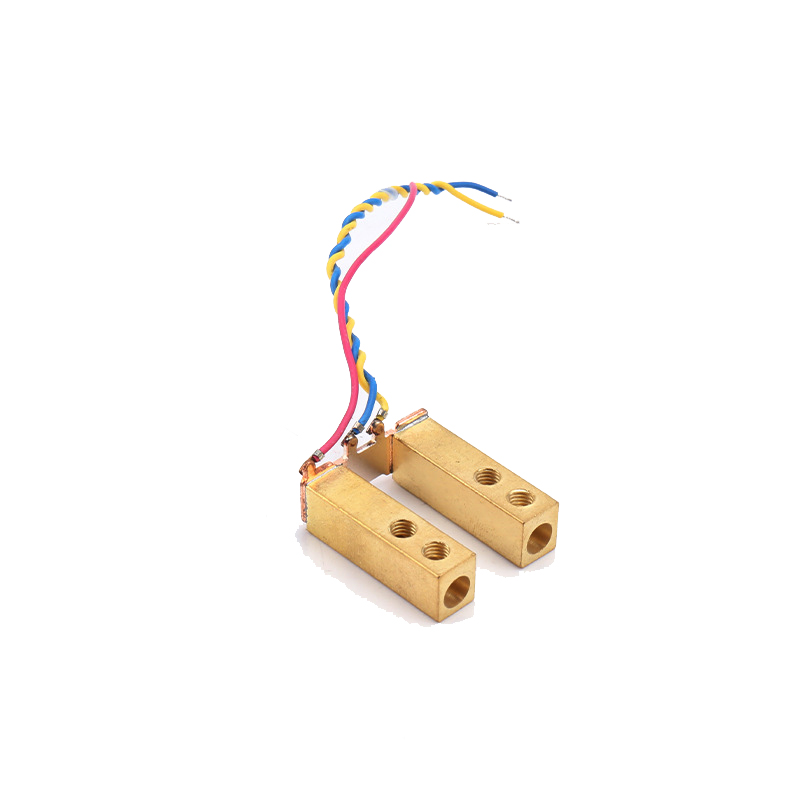

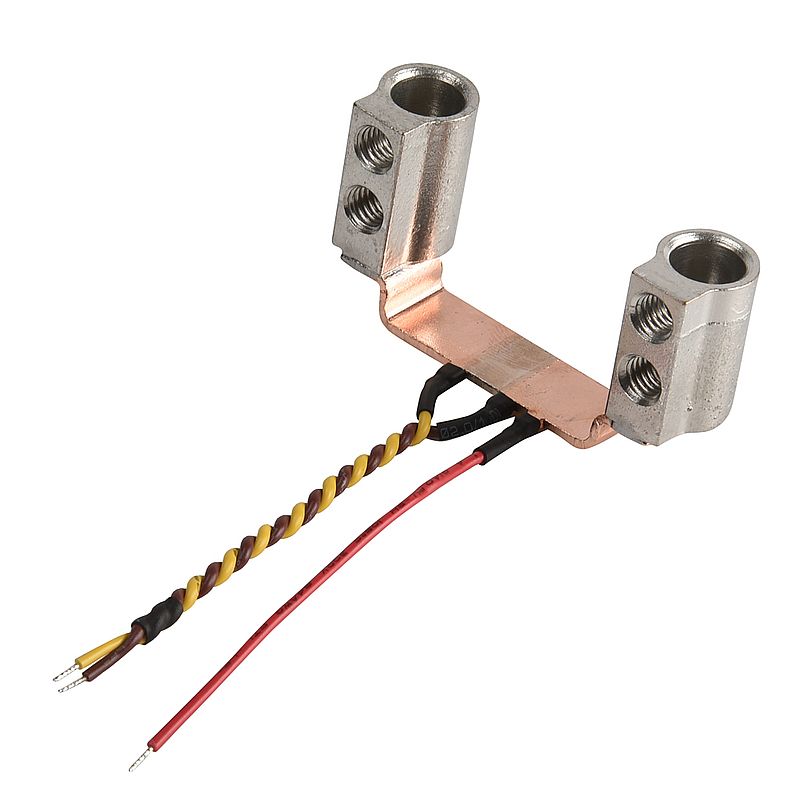

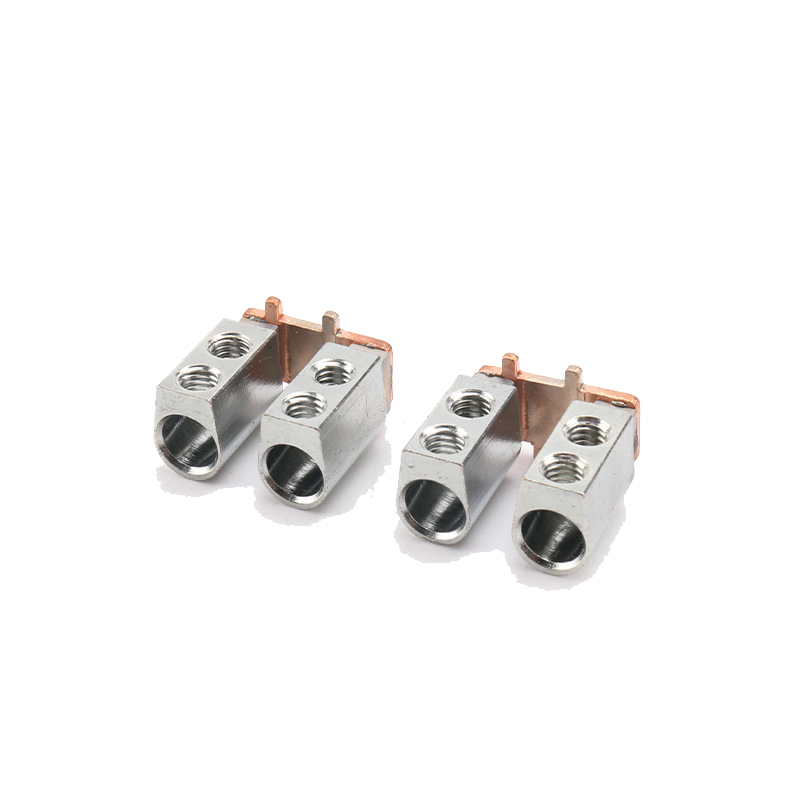

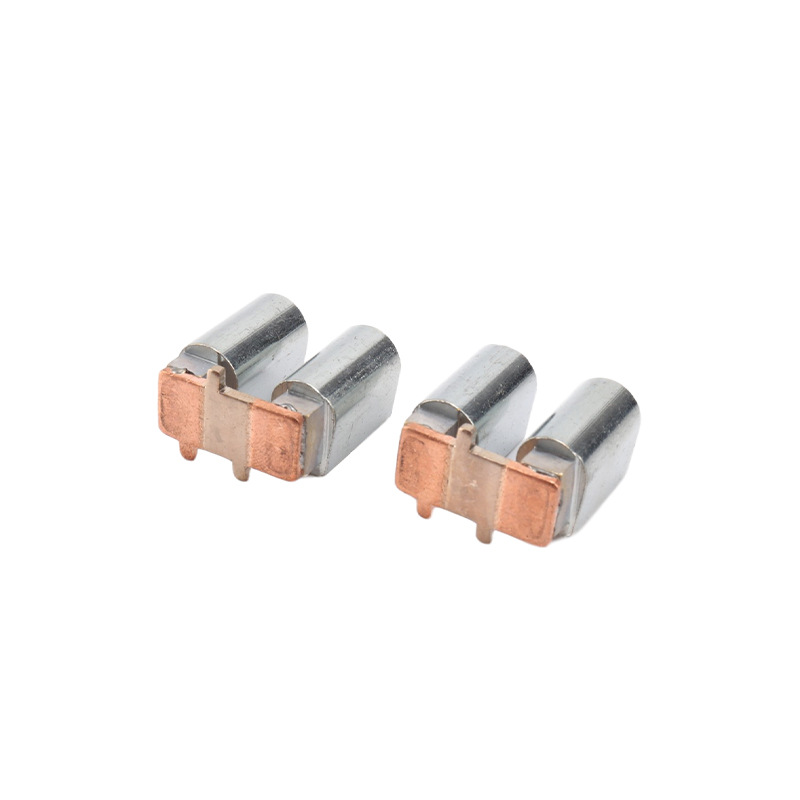

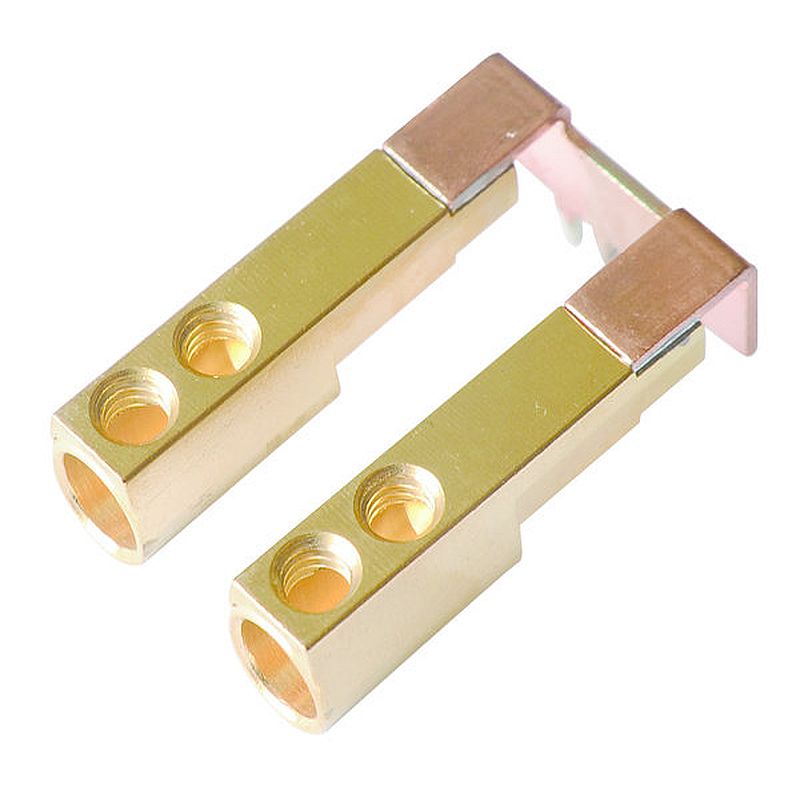

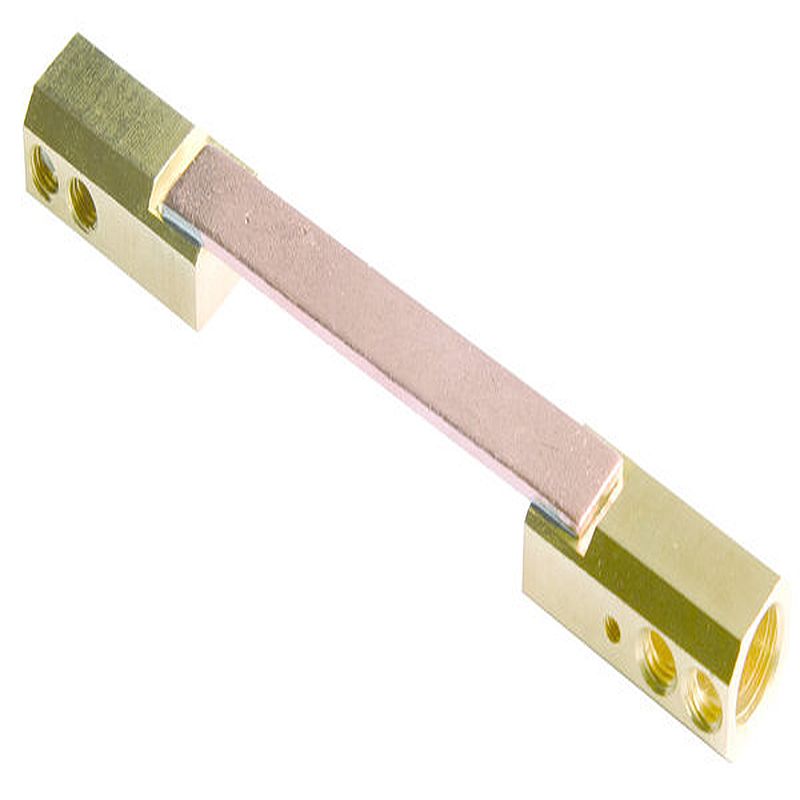

EBW Manganese Copper Shunt with Brass Terminal Description
Description
| Product Name | EBW Manganese Copper Shunt with terminal |
| P/N | P/N: MLST-2173 |
| Material | Copper, manganese copper |
| Terminal | Terminal(H59/H62 Brass) |
| Resistance value | 50~2000μΩ |
| Thickness | 1.0,1.0-1.2mm ,1.2-1.5mm ,1.5-2.0mm,2.0-2.5mm -2.5mm |
| Resistance tolerance | ﹢5% |
| Error | 2-5% |
| Operating temperature | -45℃~+170℃ |
| Current | 25-400A |
| Process | Electron beam welding, brazing |
| Surface treatment | Passivized by pickling |
| Temperature coefficient resistance | TCR＜50PP M/K |
| Loading Ability | MAX 500A |
| Mounting Type | SMD, Screw, Welding and so on |
| OEM/ODM | Accept |
| Packing | Polybag +carton +pallet |
| Application | Instrument and meter, telecommunication equipment, electric vehicle, charging station, DC/AC power system, and so on. |
Features
Flexible to any types of terminal connection
Easy assembly and fastening, high productivity
High accuracy, low error, NO Visible Welds, Smooth Surface
High Torque resistance available after thermal treatment of terminal.
Smooth surface, small contact resistance to reduce heating
Mounting with screw on the terminal available
