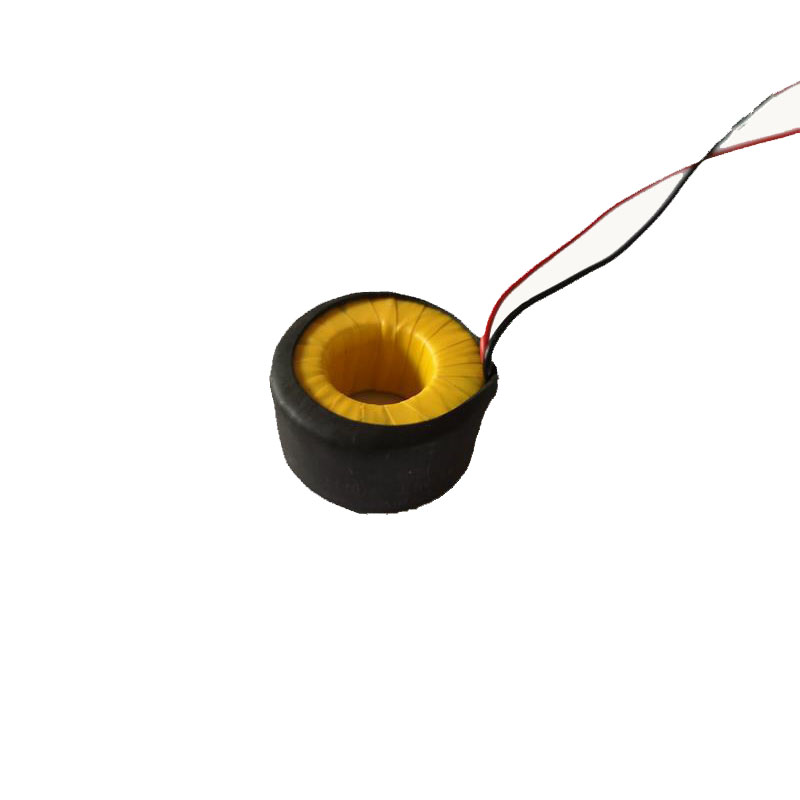

CTs are essential in various applications, including:
Protection Systems: CTs are integral to protective relays that safeguard electrical equipment from overloads and short circuits. By providing a scaled-down version of the current, they enable the relays to operate without being exposed to high currents.
Metering: In commercial and industrial settings, CTs are used to measure energy consumption. They allow utility companies to monitor the amount of electricity consumed by large users without directly connecting measuring devices to high-voltage lines.
Power Quality Monitoring: CTs help in analyzing power quality by measuring current harmonics and other parameters that affect the efficiency of electrical systems.
Understanding Voltage Transformers (VT)
A Voltage Transformer (VT), also known as a Potential Transformer (PT), is designed to measure voltage levels in electrical systems. Like CTs, VTs operate on the principle of electromagnetic induction, but they are connected in parallel with the circuit whose voltage is to be measured. The VT steps down the high voltage to a lower, manageable level that can be safely measured by standard instruments.
VTs are commonly used in:
Voltage Measurement: VTs provide accurate voltage readings for monitoring and control purposes in substations and distribution networks.
Protection Systems: Similar to CTs, VTs are used in protective relays to detect abnormal voltage conditions, such as overvoltage or undervoltage, which can lead to equipment damage.
Metering: VTs are also employed in energy metering applications, particularly for high-voltage systems, allowing utilities to measure energy consumption accurately.
Key Differences Between CT and VT
While both CTs and VTs are essential components in electrical systems, they differ significantly in their design, function, and applications. Here are the key differences:
Functionality:
CTs measure current and are connected in series with the load. They provide a scaled-down current that is proportional to the primary current.
VTs measure voltage and are connected in parallel with the circuit. They step down high voltage to a lower level for measurement.
Connection Type:
CTs are connected in series, meaning the entire current flows through the primary winding.
VTs are connected in parallel, allowing the voltage across the primary circuit to be measured without interrupting the flow of current.
Output:
CTs produce a secondary current that is a fraction of the primary current, typically in the range of 1A or 5A.
VTs produce a secondary voltage that is a fraction of the primary voltage, often standardized to 120V or 100V.
Applications:
CTs are primarily used for current measurement, protection, and metering in high-current applications.
VTs are used for voltage measurement, protection, and metering in high-voltage applications.
Design Considerations:
CTs must be designed to handle high currents and are often rated based on their burden (the load connected to the secondary).
VTs must be designed to handle high voltages and are rated based on their voltage transformation ratio.
