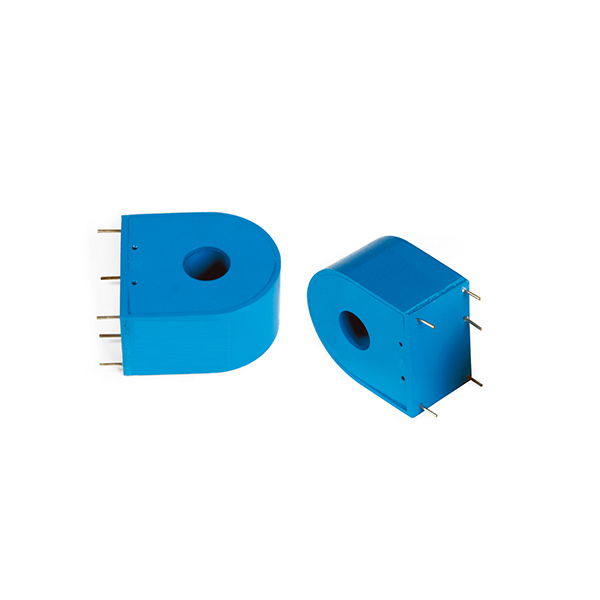

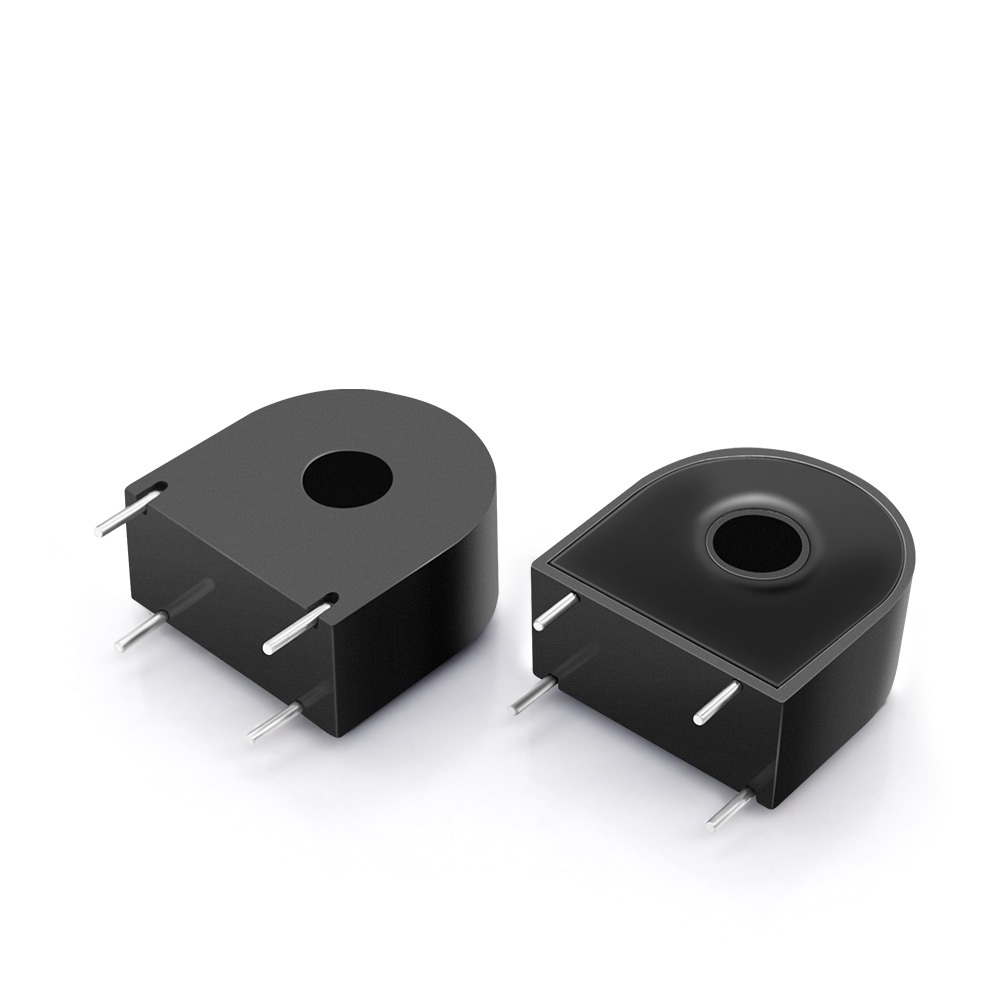

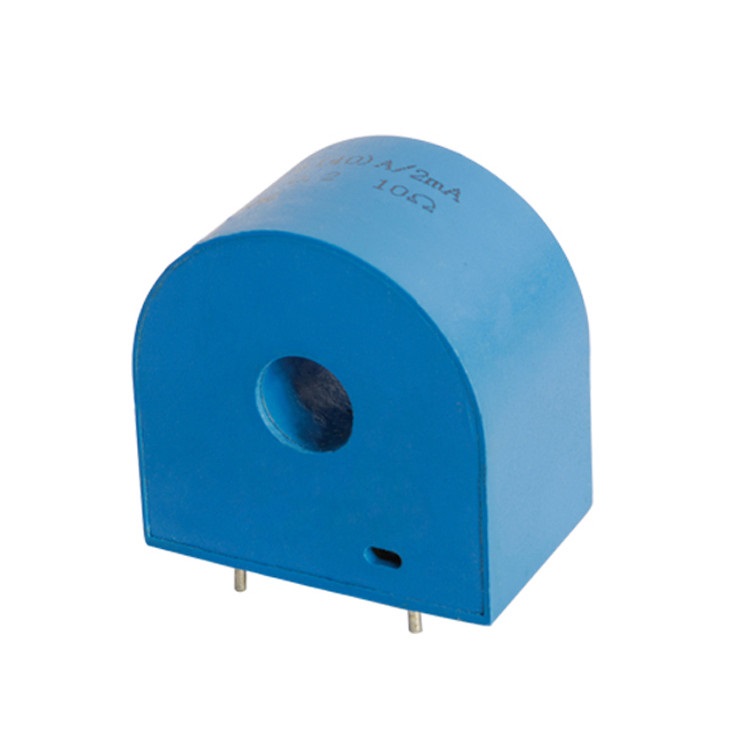

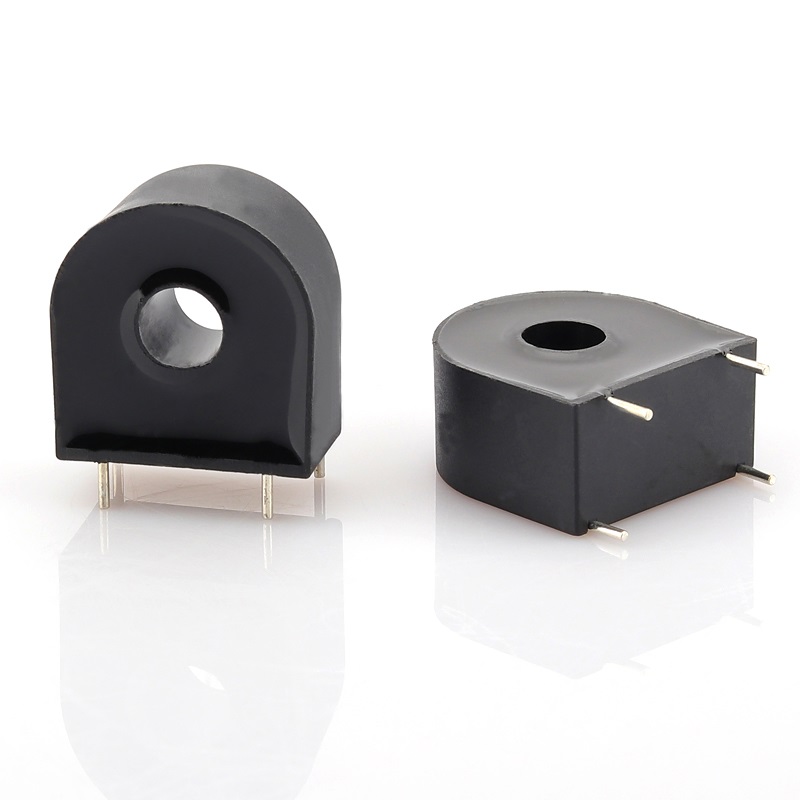

Precision AC/DC PCB-mounted Type Current Transformer
Description
| Product Name | PCB-mounted Type Current Transformer |
| P/N | MLPC-2141 |
| Installation method | PCB |
| Primary Current | 6-200A |
| Turns Ratio | 1:2000, 1:2500, |
| Accuracy | 0.1/0.2/0.5 Class |
| Load Resistance | 10Ω/20Ω |
| Core Material | Ultracrystalline ( double-core for DC) |
| Phase Error | <15' |
| Insulation resistance | >1000MΩ (500VDC) |
| Insulation withstand voltage | 4000V 50Hz/60S |
| Operating Frequency | 50Hz~400Hz |
| Operating Temperature | -40℃ ~ +95℃ |
| Encapsulant | Epoxy |
| Outer Case | Flame Retardant PBT |
| Application | Wide Application for Energy Meter, Circuit Protection, Motor Control Equipment，AC EV Charger |
Features
Small size can be mounted directly on the PCB, easy integration, saving production cost
Big inner hole, suitable for any primary cables and bus bars
Encapsulated with epoxy resin, high insulation and isolation capacity, moisture and shock resistant
Wide linearity range, high output current accuracy and good consistency
Made of PBT flame retardant plastic casing
RoHS Compliance is available on request
Different casing colors available on request
For AC:
AC measurement capacity is 20% higher than rated current
Negligible small amplitude error
Extreme linear, easily compensable phase curve
Low temperature dependence
|
Primary Current (A) |
Turns ratio |
Burden resistance(Ω) |
AC Error (%) |
Phase Shift (') |
Accuracy |
|
6 |
1:2500 |
10/12.5/15/20 |
<0.1 |
<15 |
≤0.1 |
|
10 |
|||||
|
20 |
|||||
|
30 |
|||||
|
40 |
|||||
|
60 |
|||||
|
80 |
|||||
|
100 |
|||||
|
120 |
|||||
|
150 |
|||||
|
200 |
For DC：
Special double-core structure
Resistance to DC component
AC measurement capacity is 20% higher than rated current
DC measurement capacity is more than 75% of the rated AC
| Primary Current (A) | Turns ratio | Burden resistance(Ω) | AC Error (%) | Phase Shift (') | Accuracy | |
|
AC |
DC |
|||||
|
6 |
6/√2 |
1:2500 |
10/12.5/15/20 |
<0.1 |
<15 |
≤0.1 |
|
60 |
60/√2 |
|||||
|
100 |
100/√2 |
|||||
|
120 |
120/√2 |
|||||
